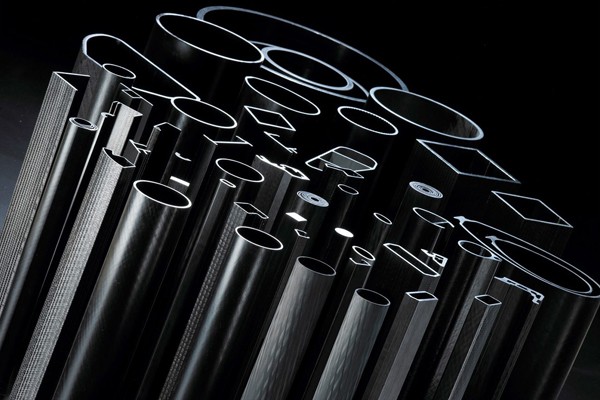

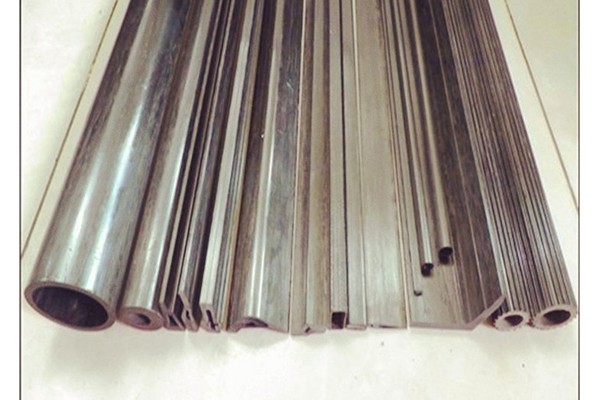

CFRP are manufactured by put the reinforced materials impregnated resin adhesive ,such as fiber roving, continuous strand mat or other fabrics, under the pull force, through a group of preformer into a die, and then cure by heating, continue to produce FPR profiles with unlimited length.
Item | W | H | T | Weight | |
mm | mm | mm | kg/m | ||
Round Bar | ![]() | 5 | 0.04 | ||
6 | 0.06 | ||||
8 | 0.10 | ||||
9.5 | 0.14 | ||||
10 | 0.16 | ||||
12 | 0.22 | ||||
12.7 | 0.25 | ||||
16 | 0.39 | ||||
25 | 0.95 | ||||
32 | 1.55 | ||||
38 | 2.18 | ||||
48.5 | 3.55 | ||||
50 | 3.77 | ||||
Round Tube | ![]() | 10 | 2.5 | 0.12 | |
12 | 3 | 0.17 | |||
12.5 | 4 | 0.21 | |||
16 | 2 | 0.17 | |||
17.5 | 2.75 | 0.25 | |||
25 | 2.5 | 0.34 | |||
32 | 3 | 0.53 | |||
38 | 3 | 0.64 | |||
48.5 | 6.75 | 1.70 | |||
50 | 5 | 1.36 | |||
50 | 6.35 | 1.68 | |||
50 | 7.5 | 1.93 |
