Engineers and architects use frp pultrusion profile shapes to create strong and lightweight structures. These profiles come in many forms, each with unique benefits for building projects. Common shapes include:

• I-beams (I-sections)

• Rectangular and square tubes

• C-channels and U-channels

• Angles and custom profiles

The shape of each frp profile affects how it handles force, resists bending, and fits into different designs. Understanding these options helps decision-makers choose the right pultrusion for safety, durability, and cost-efficiency.

Key Takeaways

• FRP pultrusion profiles come in various shapes, including I-beams, channels, and tubes, each offering unique benefits for construction.

• Understanding the shape of FRP profiles is crucial for ensuring safety, durability, and cost-effectiveness in building projects.

• The pultrusion process creates strong, lightweight profiles by pulling fiberglass through resin, resulting in consistent and reliable shapes.

• Material composition plays a key role; fiberglass combined with polyester or vinyl ester resin provides a balance of strength and cost.

• Different shapes handle forces differently; for example, rectangular profiles often outperform square ones in structural applications.

• FRP profiles resist corrosion, making them ideal for harsh environments like marine and wastewater treatment facilities.

• Lightweight FRP profiles simplify installation, reducing labor costs and minimizing the risk of workplace injuries.

• Selecting the right FRP profile involves considering load requirements, environmental exposure, and specific project needs.

What Are FRP Pultrusion Profiles

Pultrusion Process Overview

The pultrusion process creates strong and consistent shapes for use in construction and industry. This method pulls continuous strands of fiberglass through a series of steps that turn raw materials into finished profiles. The main steps include:

1. Fiber rovings unwind from spools.

2. The fibers pass through a bath where they soak up liquid resin.

3. The resin-coated fibers move into a preforming station that shapes them.

4. The shaped bundle enters a heated steel die, where it cures and hardens.

5. A pulling mechanism draws the profile through the die.

6. The finished profile is cut to the required length.

7. Workers inspect the final product for quality.

This process produces frp pultrusion profiles with precise shapes and reliable performance.

Material Composition

FRP pultrusion profiles use a mix of fibers and resins. The fibers provide strength, while the resin holds everything together and protects the fibers. The most common materials include:

Most frp pultrusion profile products use fiberglass and polyester or vinyl ester resin. This combination gives a balance of strength, durability, and cost.

Why Shape Matters

The geometry of an frp pultrusion profile plays a key role in its performance. Different shapes handle forces in unique ways and suit different uses. For example, rectangular profiles often perform better than square ones in structural applications. Wall thickness and slenderness affect how a profile resists buckling and supports loads. The length-to-depth ratio changes stiffness and strength, while also influencing how much a profile can bend before failing.

Note: Engineers select the shape of frp pultrusion profiles based on the forces and conditions the structure will face. The right shape improves safety, reduces material use, and extends the life of the structure.

Types of FRP Pultrusion Profiles

FRP pultrusion profiles come in a wide range of cross-sectional shapes. These profiles serve as the backbone for many structural and architectural applications. Engineers and builders select from several main categories based on the needs of their projects.

Angular Profiles

Angular profiles feature sharp corners and defined edges. These shapes provide excellent support in structures that require high strength and rigidity.

I-Beams

I-beams have a central vertical web and horizontal flanges at the top and bottom. This design gives them a high strength-to-weight ratio. I-beams resist bending and support heavy loads over long spans. Builders use them in bridges, platforms, and building frames.

H-Beams

H-beams look similar to I-beams but have wider flanges and a thicker web. This shape increases their load-bearing capacity. H-beams work well in columns and supports where stability is critical.

Channels

Channels, also called C-channels or U-channels, have a single web with flanges on one side. These profiles provide support along edges and frames. Channels often appear in floor systems, wall supports, and equipment frames.

Angles

Angles form an L-shape. They reinforce corners and edges in structures. Angles help connect other profiles and add rigidity to frames.

Angular FRP pultrusion profiles offer several advantages:

• High durability and strength allow them to handle significant mechanical stress.

• Corrosion resistance makes them suitable for harsh environments.

• Lightweight design means they are up to 75% lighter than steel, which speeds up installation.

• Electrical insulation protects against electrical hazards.

• Design flexibility allows for custom dimensions and formulations.

Hollow Profiles

Hollow profiles include tubes and pipes with empty centers. These shapes combine low weight with high structural efficiency.

Rectangular Tubes

Rectangular tubes have a box-like shape. They provide excellent resistance to bending and twisting. Builders use them in frames, supports, and enclosures.

Round Tubes

Round tubes distribute stress evenly around their circumference. This makes them ideal for columns, railings, and handrails.

Pipes

Pipes carry fluids or protect cables. They also serve as structural supports in many settings.

Hollow FRP pultrusion profiles stand out for their strength-to-weight ratio, corrosion resistance, and design flexibility. These properties make them ideal for environments where traditional materials might fail due to rust or excessive weight. Typical applications include:

• Rooftop structures

• Pedestrian bridges

• Modular buildings

• Retrofitting projects

• Marine docks

• Cooling towers

• Industrial cladding systems

• Reinforcement of concrete structures

Solid Profiles

Solid profiles have no hollow spaces. They provide maximum material in the cross-section, which leads to unique mechanical properties.

Solid Rods

Solid rods are cylindrical and resist bending and compression. They work well as braces, pins, and supports.

Square Bars

Square bars offer uniform strength in all directions. Builders use them in frameworks, supports, and as connectors.

Flat Sheets

Flat sheets provide a broad surface area. They serve as panels, covers, and protective barriers.

Solid FRP pultrusion profiles resist environmental degradation, chemical attack, and moisture infiltration. They require little maintenance because they do not rust or need protective coatings. These profiles maintain their structural integrity under demanding conditions, which leads to a long service life. Common uses include:

• Solid FRP profiles maintain structural integrity without rusting or pitting.

• They show long-term stability in environments with acids, alkalis, and saline conditions.

• This durability reduces maintenance needs and extends the service life of pultruded products.

Complex and Custom Profiles

Complex and custom FRP pultrusion profiles expand the possibilities for engineers and designers. These profiles go beyond standard cross-sectional shapes to solve unique challenges in many industries. Manufacturers use advanced design tools to create profiles that fit exact project needs. This approach allows for the integration of special features, such as grooves, flanges, or mounting points, directly into the profile.

Sludge Flights

Sludge flights play a key role in water and wastewater treatment plants. These long, flat profiles move sludge along the bottom of rectangular tanks. FRP sludge flights resist corrosion from chemicals and moisture. They also weigh less than metal alternatives, which makes installation and maintenance easier. Operators choose FRP sludge flights for their durability and long service life in harsh environments.

Key benefits of FRP sludge flights include:

• High resistance to rot, rust, and chemical attack

• Lightweight structure for easier handling and installation

• Low maintenance requirements over time

• Long-term performance in wet and corrosive conditions

Engineers often select these profiles for clarifiers, sedimentation tanks, and other treatment systems where reliability matters most.

Specialty Shapes

Specialty shapes cover a wide range of custom frp profiles designed for specific tasks. These profiles can include integrated cable trays, snap-fit connectors, or complex geometries that fit into tight spaces. Designers use advanced CAD and simulation software to model stress, deflection, and thermal behavior before production. This process reduces prototyping time and ensures the final product meets all performance requirements.

Custom FRP profiles address unique structural challenges in several ways:

• They match exact structural needs, including unusual cross-sectional shapes and built-in features.

• They optimize load distribution and improve structural efficiency.

• They fit into tight or irregular spaces where standard profiles cannot work.

• They replace metal components directly, often without changing the surrounding system.

• They can include functional elements, such as channels for cables or snap-fit joints.

Many industries rely on specialty FRP profiles for their projects. The table below shows examples of how different sectors use these advanced shapes:

Note: Custom FRP profiles give engineers the flexibility to solve problems that standard profiles cannot address. This flexibility leads to safer, more efficient, and longer-lasting structures.

FRP Pultrusion Profile Performance Comparison

Strength and Load Capacity

Engineers often choose an frp pultrusion profile for its high strength and reliable load characteristics. The shape of each profile affects how much weight it can support and how it distributes force. Some profiles, like I-beams and box profiles, offer very high structural strength. Others, such as channels and angles, provide targeted support in specific areas.

The table below compares the strength and common uses of several frp pultrusion profiles:

I-beams stand out for their very high structural strength. Builders use them in floor joists, roof supports, and bridges. C-channels also provide high strength and work well in framing and industrial supports. The right choice depends on the load requirements and the specific application.

Stiffness and Flexural Properties

Stiffness measures how much a profile bends under force. Flexural properties describe how a profile handles bending and twisting. FRP pultrusion profiles show excellent stiffness, especially in box and I-beam shapes. These profiles resist bending and keep their shape under heavy loads.

• Box profiles and I-beams provide high stiffness for long spans.

• Angle and channel profiles add support at corners and edges.

• Custom profiles can balance stiffness and flexibility for unique needs.

Engineers select profiles based on the flexural properties needed for each project. For example, handrails and frames require profiles that do not bend easily. In contrast, some specialty products need a mix of stiffness and flexibility.

Corrosion Resistance

FRP pultrusion profiles offer outstanding corrosion resistance. They do not rust or pit when exposed to chemicals, salts, or moisture. This sets them apart from steel, which rusts, and aluminum, which can corrode in certain environments. These profiles maintain their structural integrity in harsh conditions, reducing maintenance and extending service life.

FRP pultrusion profiles resist a wide range of chemicals, including acids, alkalis, salts, and organic solvents. This makes them valuable in environments where traditional materials would fail.

Environmental factors that affect corrosion resistance include:

• Chemicals in the air or water

• High moisture levels

• Exposure to salts or other corrosive agents

FRP profiles perform well in these conditions. They keep their strength and durability, even after years of use. This reliability makes them a smart choice for water treatment plants, marine structures, and chemical facilities.

Weight and Handling

FRP pultrusion profiles stand out for their lightweight properties. This feature brings several advantages to construction and engineering projects. Workers can move and position these profiles with less effort than steel or concrete. Lighter weight means crews need fewer people and less heavy equipment during installation. This benefit becomes even more important in hard-to-reach places, such as rooftops or elevated walkways.

The reduced weight of FRP pultrusion profiles also lowers transportation costs. Trucks use less fuel when carrying lighter loads. Companies can ship more material in a single trip, which saves time and money. These savings add up, especially for large projects or remote locations.

Tip: Lightweight FRP pultrusion profiles help speed up installation and reduce workplace injuries. Teams can complete projects faster and with less risk.

The table below compares the handling characteristics of common structural materials:

FRP pultrusion profiles also resist damage during handling. They do not dent or deform easily. This durability means fewer replacements and less waste on the job site.

Cost Factors

Cost plays a major role in material selection for any project. FRP pultrusion profiles often have higher initial prices than steel or aluminum. The use of specialty reinforcements or additives can increase these costs further. However, the story does not end with the purchase price.

When considering the total life cycle cost, FRP pultrusion profiles can offer better value. They require little maintenance because they do not rust or corrode. Their long service life reduces the need for repairs and replacements. The lightweight nature of these profiles also cuts transportation and installation expenses.

Key variables that influence the price of FRP pultrusion profiles include:

• The type of reinforcement fiber and resin used

• The complexity of the profile shape

• The need for custom features or additives

• The volume of material ordered

Note: While the upfront cost of FRP pultrusion profiles may be higher, their durability and low maintenance often make them more cost-effective over time.

Project planners should compare not only the initial price but also the long-term savings. For applications in harsh environments or where weight matters, FRP pultrusion profiles can provide the best balance of performance and cost.

Choosing the Right FRP Pultrusion Profile

Selecting the best FRP pultrusion profile depends on the specific needs of each project. Application requirements such as load-bearing, environmental exposure, and industry standards guide the decision. Engineers and builders must match the profile shape to the demands of the structure to ensure safety and efficiency.

Application-Based Selection

Building Structures

In building construction, profiles like I-beams and channels provide essential support for floors, roofs, and walls. These shapes deliver high structural strength while keeping the overall weight low. Builders often choose rectangular tubes for framing and flat sheets for cladding. The right profile helps distribute loads evenly and resists bending or twisting.

Bridges and Walkways

Bridges and walkways require profiles that can handle heavy pedestrian or vehicle loads. Box profiles and I-beams work well for these applications because they offer excellent stiffness and durability. Round tubes often serve as handrails or guardrails, adding safety without extra weight. Corrosion resistance ensures long-term performance, especially in outdoor environments.

Industrial Platforms

Industrial settings demand profiles that withstand vibration, impact, and chemical exposure. Channels and angles reinforce platforms and walkways, while solid rods and square bars provide extra support where needed. Lightweight FRP profiles make installation easier and reduce the need for heavy lifting equipment. Proper selection ensures the structure remains stable and safe under constant use.

Marine and Water Treatment

Marine and water treatment facilities face harsh conditions, including moisture, chemicals, and salt. Profiles such as pipes, rectangular tubes, and specialty shapes resist corrosion and maintain their strength over time. Sludge flights and custom profiles help move materials efficiently in treatment plants. The right choice extends service life and reduces maintenance.

When choosing a profile, consider:

• Load-bearing needs

• Environmental exposure (moisture, UV, chemicals)

• Industry-specific requirements

Limitations and Considerations

While FRP pultrusion profiles offer many advantages, they also have some limitations. The table below outlines key challenges to consider:

To avoid common pitfalls, project teams should:

• Prepare surfaces properly for bonding.

• Select the right type of FRP for the environment and project needs.

• Monitor temperature and humidity during installation.

• Maintain strict quality control to ensure standards are met.

• Consult experienced professionals for guidance.

Careful planning and attention to these factors help ensure the success and longevity of any FRP-based structure.

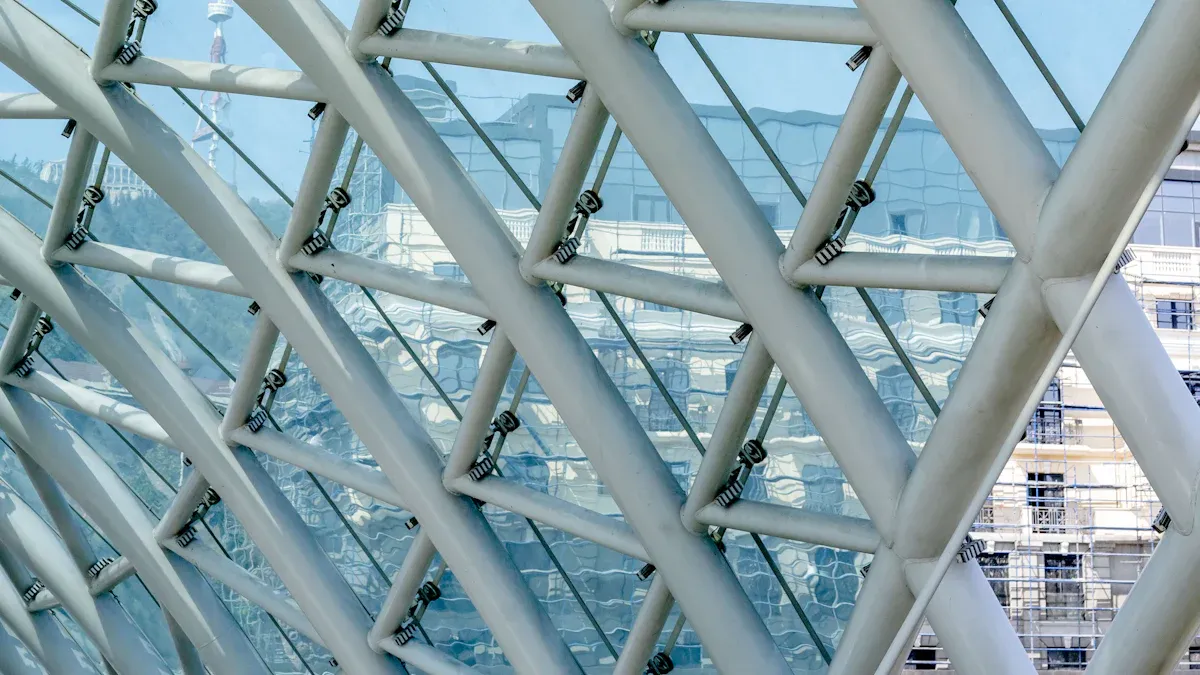

Design and Installation Factors

Load and Safety

Engineers must consider how each FRP pultrusion profile handles load. The shape and size of the profile affect its ability to support weight and resist bending. Safety depends on choosing the right profile for the expected forces. For example, I-beams and box profiles carry heavy loads across long spans. Angles and channels reinforce corners and edges. Builders check the maximum load each profile can handle before installation.

Safety also involves planning for unexpected events. Profiles must withstand wind, vibration, and impact. Designers use safety factors to ensure the structure stays strong even if the load increases. They test profiles for strength and stability. Proper planning prevents accidents and keeps people safe.

Tip: Always follow building codes and standards when selecting FRP profiles. These rules help protect workers and users.

Connections and Joints

Connections and joints play a key role in the strength of FRP structures. Engineers design joints to transfer load between profiles without causing weak spots. Common methods include bolting, bonding, and mechanical fasteners. Each method has advantages and challenges.

Bolted joints provide strong connections and allow for easy adjustments. Bonded joints use adhesives to create a smooth finish and prevent gaps. Mechanical fasteners, such as clips or brackets, work well in modular systems. Designers choose the best method based on the profile shape and the expected load.

Corrosion can affect metal fasteners and connectors. FRP profiles offer corrosion resistance, which protects the structure in harsh environments. Builders often use stainless steel or coated fasteners to prevent corrosion and extend the life of the joint.

Installation Tips

Proper installation ensures FRP pultrusion profiles perform as expected. Workers must handle profiles carefully to avoid damage. They should store profiles in dry areas and protect them from sunlight. Before installation, teams inspect each profile for cracks or defects.

Installers use simple tools for cutting and drilling. They measure and mark profiles to fit the design. Workers secure profiles with bolts, adhesives, or fasteners. They check each connection for tightness and stability.

Note: Wear gloves and safety glasses when working with FRP profiles. This protects against splinters and dust.

Teams follow the manufacturer’s instructions for installation. They avoid over-tightening bolts, which can cause cracks. Builders seal joints to keep out moisture and prevent corrosion. Regular inspections help maintain the structure and catch problems early.

Maintenance

Proper maintenance helps FRP pultrusion profiles last longer and perform better. These profiles resist rust, rot, and many chemicals, but regular care still matters. Simple steps can prevent problems and keep structures safe.

Routine Inspection Checklist

• Look for cracks, chips, or surface wear.

• Check for loose connections or fasteners.

• Inspect for signs of UV damage, such as fading or chalking.

• Examine joints and seals for leaks or gaps.

• Watch for buildup of dirt, algae, or other debris.

Tip: Schedule inspections at least twice a year. Increase frequency in harsh environments, such as near saltwater or chemicals.

Cleaning Procedures

Most FRP pultrusion profiles clean easily with mild soap and water. Workers should avoid harsh chemicals or abrasive tools. A soft brush or cloth removes dirt without scratching the surface. For stubborn stains, a diluted vinegar solution often works well.

Repair and Protection

Small chips or scratches rarely affect the strength of an FRP pultrusion profile. Workers can repair minor damage with resin-based patch kits. For larger cracks or deep gouges, consult a specialist. They may need to replace the damaged section.

UV rays can weaken the surface over time. Applying a UV-resistant coating helps protect the profile. In areas with high sunlight, reapply the coating every few years.

Preventive Measures

• Keep profiles clean and dry when possible.

• Trim nearby plants to reduce mold and algae growth.

• Use protective covers in storage or during long construction delays.

• Avoid dropping heavy tools or equipment on the profiles.

Note: FRP pultrusion profiles need less maintenance than steel or wood. They do not rust or rot, which saves time and money.

When to Call a Professional

If a structure shows major cracks, bending, or loose sections, contact an expert. They can assess the damage and suggest the best repair. Regular maintenance and quick repairs help FRP pultrusion profiles stay strong and safe for many years.

Selecting the right frp pultrusion profile ensures structural strength, safety, and long-term value. Engineers should match profiles to the expected load, consider corrosion resistance, and focus on connection methods. The table below highlights key factors for choosing frp pultrusion profiles and products:

For more details, consult design guides or reach out to FRP specialists.

FAQ

What is an FRP pultrusion profile?

An FRP pultrusion profile is a structural shape made by pulling fibers through resin and a heated die. This process creates strong, lightweight parts used in construction, bridges, and industrial projects.

How does an FRP pultrusion profile compare to steel?

FRP pultrusion profiles weigh less than steel and resist corrosion. They do not rust or need painting. Steel offers higher impact resistance, but FRP profiles often last longer in harsh environments.

Where can engineers use FRP pultrusion profiles?

Engineers use FRP pultrusion profiles in buildings, walkways, bridges, water treatment plants, and marine structures. These profiles work well where low weight and corrosion resistance matter most.

Can FRP pultrusion profiles handle outdoor conditions?

Yes. FRP pultrusion profiles resist moisture, chemicals, and UV rays. They perform well outdoors, especially in places where steel or wood would fail due to rust or rot.

Are FRP pultrusion profiles easy to install?

Yes. Workers can cut, drill, and assemble FRP pultrusion profiles with standard tools. The lightweight design makes handling and installation faster and safer than with heavier materials.

What shapes do FRP pultrusion profiles come in?

Common shapes include I-beams, channels, angles, tubes, rods, and custom designs. Each shape offers different strengths and fits specific structural needs.

How long do FRP pultrusion profiles last?

Most FRP pultrusion profiles last for decades. They resist corrosion and need little maintenance. Regular inspections help ensure long service life.

Do FRP pultrusion profiles require special maintenance?

No. FRP pultrusion profiles need only basic cleaning and occasional inspections. They do not rust or rot, so maintenance is simple compared to steel or wood.
